Victory Motorcycles Arlen Ness Vision Cycle Dragon Motorsports Cerritos, CA (562) 468-1980

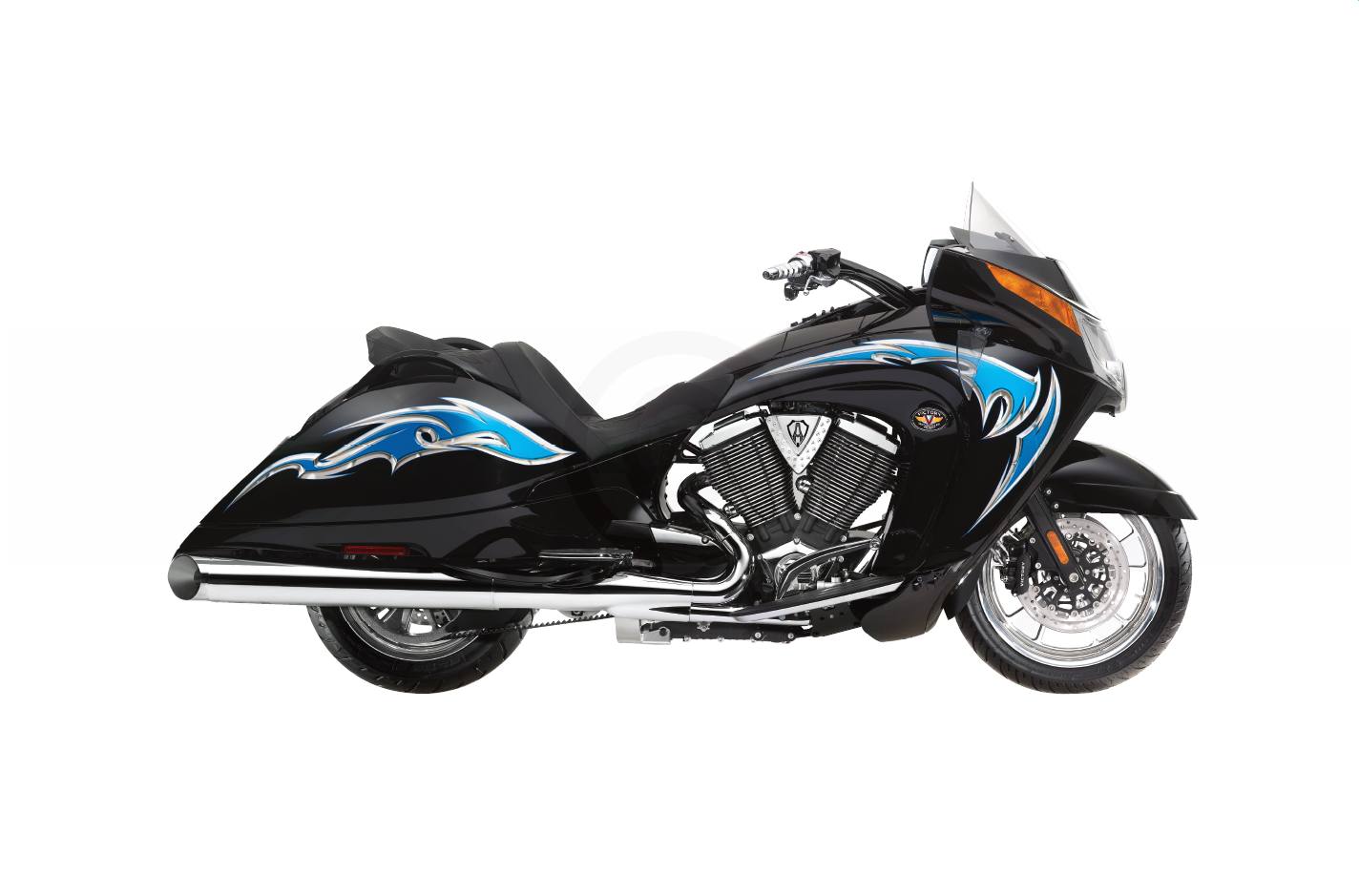

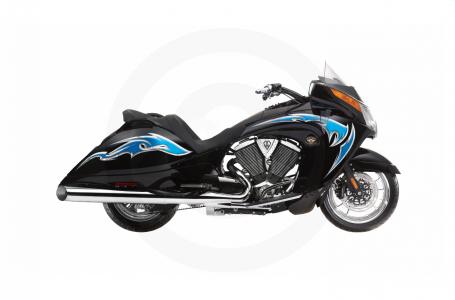

Master custom motorcycle builder Arlen Ness has done it again in designing the breathtaking 2010 Arlen Ness Signature Victory Vision® Motorcycle. This limited-edition masterpiece comes complete with Ness custom-designed paint, a powerful 106-cubic-inch Freedom® V-Twin Engine with diamond-cut heads, Ness Signature chrome, hand-stitched leather seats, and so much more.

For smooth, powerful, eye-catching cruising on Main Street or touring across state lines, the Arlen Ness Signature Victory Vision® provides the ultimate experience. Find out more about its features, specifications, pricing, comparisons, reviews, videos, images, brochures, downloads, and locate your nearest dealer that has the Arlen Ness Signature Victory Vision® Motorcycle.

Custom Stitched Seats - Arlen likes his bikes long and low, so he has developed a seat that is lower than the stock Victory vision seat. It's custom, stitched seat that enhances the bike's flowing lines.
Numbered Badges - Each limited-edition bike has a metal plate with the bike's number, the Arlen Ness logo and a facsimile of Arlen Ness's autograph.
Diamond-Cut Cylinders Heads - The epitome of customizing, these precision diamond-cut cylinders help this Ness model stand out from the crowd. It's a premium styling touch from a custom master, Cory Ness.
Billet Engine Covers - The premium-quality billet engine covers complement the bike's overall custom treatment and feature distinctive Ness styling.
Chrome Ness Grips - The custom treatment extends to the tips of the handlebars with Ness custom grips. They complement the bike's overall custom treatment and feature Ness styling.
Custom Radio Display - The bike features an integrated audio system with an AM/FM radio, & audio can be fed from an accessory MP3 device. The upgraded audio display panel provides details about the music being played.
Ness Windshield - Arlen likes his windshields low & stealthy, which is the look he has developed here. For additional protection while touring, higher accessory windshields are available.
Custom Ness Paint and Graphics - Arlen Ness designed the stunning custom paint for his Signature Series Victory Vision, and the pain is framed & highlighted by the many blacked-out components on the bike.
Ness Billet Wheels - Arlen's overall custom treatment of the bike extends to the billet Ness Custom wheels.

Engine

Engine Type: 4-stroke 50? V-Twin
Cooling System: Air / Oil
Displacement: 106 ci / 1731 cc
Bore x Stroke: 101 x 108 mm
Compression Ratio: 9.4:1
Valve Train: Single overhead camshafts with 4 valves per cylinder, self-adjusting cam chains, hydraulic lifters
Fuel System: Electronic Fuel Injection with dual 45 mm throttle bodies
Fuel Capacity: 6.0 gal / 22.7 ltr
Exhaust: Split dual exhaust with crossover
Oil Capacity: 5.0 qts / 4.75 ltr
Charging System: 50 amps max output
Battery: 12 volts / 18 amp hours
Primary Drive: Gear drive with torque compensator
Clutch: Wet, multi-plate
Transmission: 6-speed overdrive constant mesh
Final Drive: Carbon Fiber Reinforced Belt

Chassis Dimensions

Length: 103.5 in/ 2629 mm
Wheelbase: 65.7 in / 1670 mm
Seat Height: 24.5 in / 622 mm
Ground Clearance: 4.8 in / 122 mm
Rake/Trail: 29.0 / 5.4 in / 137 mm
Dry Weight: 804 lbs / 365 kg
GVWR: 1,414 lbs / 643 kg

Suspension

Front Suspension: Conventional telescopic fork, 46 mm diameter, 5.1 in 130 mm travel
Rear Suspension: Single, mono-tube, cast aluminum with constant rate linkage, 3.65 in/92.7 mm travel, air adjustable spring

Brakes

Front Brake: Dual 300 mm floating rotor with 3-piston caliper
Rear Brake: 300 mm floating rotor with 2-piston caliper

Wheels & Tires

Front Wheel: 18 x 3.0 in
Rear Wheel: 16 x 5.0 in
Front Tire: 130 / 70R18 Dunlop Elite 3
Rear Tire: 180 / 60R16 Dunlop Elite 3

Color Options

Solid Colors: Ness Custom Color

Specifications

Engine
Engine Type	4-stroke 50� V-Twin
Displacement	106 ci / 1731 cc
Bore and Stroke	101 x 108 mm
Cooling	Air / Oil
Compression Ratio	9.4:1
Fuel System	Electronic Fuel Injection with dual 45 mm throttle bodies
Chassis
Front Suspension	Conventional telescopic fork, 46 mm diameter, 5.1 in 130 mm travel
Front Brakes	Dual 300 mm floating rotor with 3-piston caliper
Front Tire	130 / 70R18 Dunlop Elite 3
Rear Suspension	Single, mono-tube gas,cast aluminum with rising rate linkage, 4.7 in 120 mm travel, Air adjustable
Rear Brakes	300 mm floating rotor with 2-piston caliper
Rear Tire	180 / 60R16 Dunlop Elite 3
Dimensions
Fuel Capacity	6.0 gal / 22.7 ltr, Reserve 1.0 gal / 3.8 ltr
Wheelbase	65.7 in / 1670 mm
Seat Height	26.5 in / 673 mm
Transmission
Transmission	6-speed overdrive constant mesh
Final Drive	Carbon Fiber Reinforced Belt
General
Colors	Ness Custom Color

Compare Models

Chassis

Year	2010
Manufacturer	Victory Motorcycles
Model	Arlen Ness Vision
Style	Cruiser
MSRP*	$24,999.00
Front Suspension	Conventional telescopic fork, 46 mm diameter, 5.1 in 130 mm travel
Front Brakes	Dual 300 mm floating rotor with 3-piston caliper
Front Tire	130 / 70R18 Dunlop Elite 3
Rear Suspension	Single, mono-tube gas,cast aluminum with rising rate linkage, 4.7 in 120 mm travel, Air adjustable
Rear Brakes	300 mm floating rotor with 2-piston caliper
Rear Tire	180 / 60R16 Dunlop Elite 3
Dimensions
Dry Weight
Fuel Capacity	6.0 gal / 22.7 ltr, Reserve 1.0 gal / 3.8 ltr
Wheelbase	65.7 in / 1670 mm
MPG
Seat Height	26.5 in / 673 mm
Trail
Rake
Engine
Engine Type	4-stroke 50� V-Twin
Displacement	106 ci / 1731 cc
Bore and Stroke	101 x 108 mm
Cooling	Air / Oil
Compression Ratio	9.4:1
Fuel System	Electronic Fuel Injection with dual 45 mm throttle bodies
Ignition
General
Speedometer
Tachometer
Odometer
Colors	Ness Custom Color
Warranty
Transmission
Transmission	6-speed overdrive constant mesh
Final Drive	Carbon Fiber Reinforced Belt
